Hermitlux Countertop Dishwasher How to Use: Complete Beginner Guide
If you recently bought a Hermitlux countertop dishwasher, you may be wondering how to set it up, how to add water, which wash program to choose, how much detergent to use, and how to keep it clean after daily use. This guide explains Hermitlux countertop dishwasher how to use in a simple, practical way based on the Hermitlux tabletop dishwasher manual.
A countertop dishwasher is useful for apartments, small kitchens, RVs, office pantries, and homes where a built-in dishwasher is not easy to install. The Hermitlux tabletop dishwasher is compact, but it still needs correct installation, proper loading, the right detergent, and regular maintenance. If dishes are loaded incorrectly or the filter and spray arms are blocked, cleaning performance can drop quickly.
This article walks through the whole process: understanding the machine parts, installing the inlet and drain hoses, adding water, choosing a program, starting a cycle, using the dry function, cleaning the filter and spray arms, and fixing common problems.
Article outline
- What comes with the Hermitlux countertop dishwasher
- Safety tips before use
- Installation and water connection
- How to load dishes correctly
- How to use the control panel
- Wash programs and when to use each one
- Cleaning and maintenance
- Common troubleshooting tips
What Comes with the Hermitlux Countertop Dishwasher?

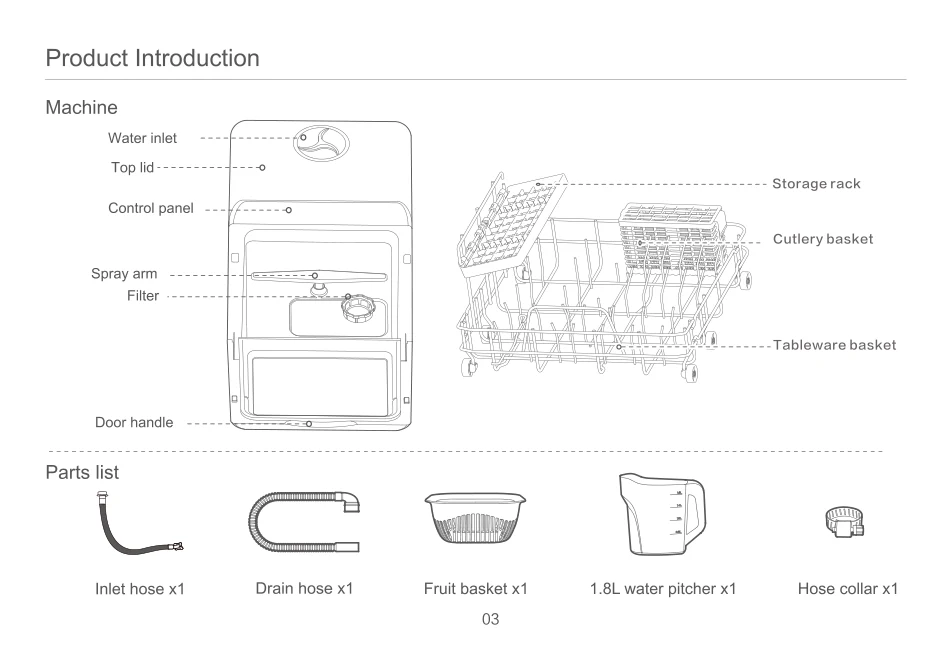

The Hermitlux manual shows the main machine parts and accessories. The dishwasher includes a water inlet, top lid, control panel, spray arm, filter, door handle, storage rack, cutlery basket, and tableware basket. The parts list also shows an inlet hose, drain hose, fruit basket, 1.8L water pitcher, and hose collar.
These accessories matter because the dishwasher can work in different water supply situations. You can connect the machine to a tap, or you can use tank mode and fill water manually with the pitcher. The drain hose removes used water from the machine, while the filter and spray arms help circulate clean water during washing.
Before first use, check that all accessories are included. Remove packing materials, tapes, foam, and loose parts from inside the dishwasher. Also make sure the rack, cutlery basket, filter, and spray arms are correctly installed before you run a wash cycle.
Safety Tips Before Using the Hermitlux Dishwasher
The manual gives several safety warnings. The power socket must be grounded to reduce the risk of electric shock. Do not share one socket with other appliances, and do not place the machine in an unstable, wet, smooth, or flammable environment. Keep it away from gas stoves, heaters, and children.
Do not open the door while the dishwasher is washing because hot water can splash out. Do not touch the hot air outlet during or shortly after operation. Do not pull the power cord, drain hose, or cutlery tray by force. Also avoid operating the machine with wet hands.
How to Install the Hermitlux Countertop Dishwasher

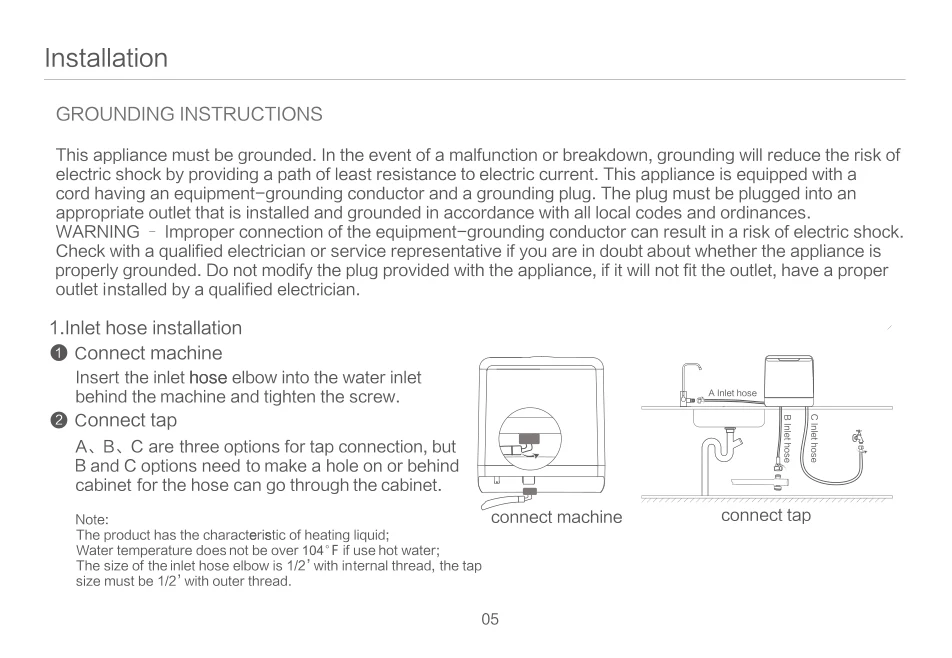

The Hermitlux countertop dishwasher is easier to install than a built-in dishwasher, but you still need to connect the inlet and drain hoses properly. For the inlet hose, insert the hose elbow into the water inlet behind the machine and tighten it. The manual shows different tap connection options, depending on your faucet and cabinet setup.
The manual notes that the water temperature should not exceed 104°F when using the water supply. It also shows that the inlet hose elbow uses a 1/2 inch internal thread, so the faucet or adapter needs to match. If your faucet does not fit the included hose, you may need a separate adapter.

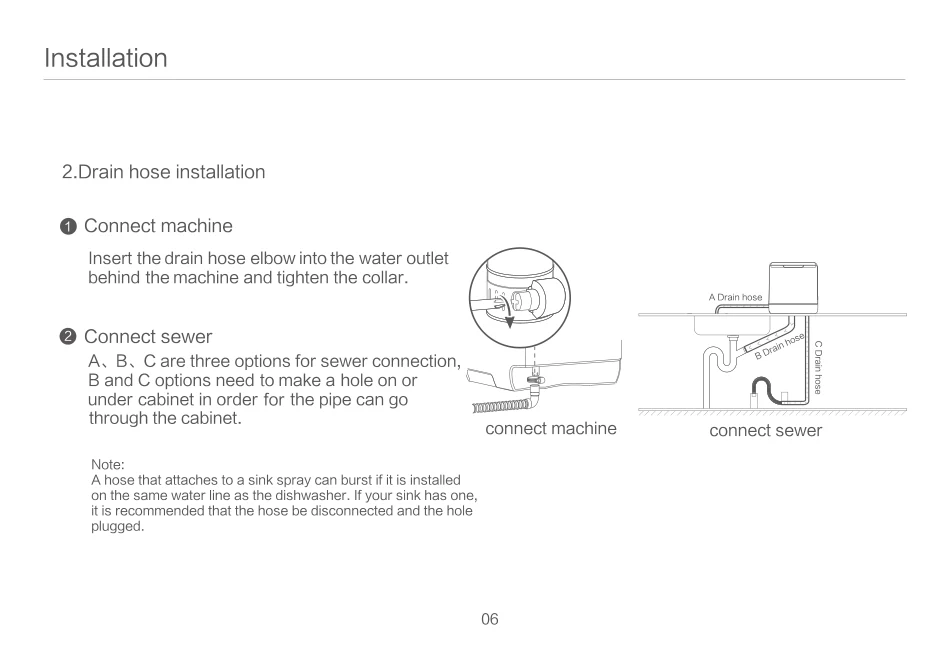

For the drain hose, insert the drain hose elbow into the water outlet behind the machine and tighten the collar. The other end should connect to the sewer line or drain safely into the sink area depending on your setup. Make sure the hose is not bent, crushed, blocked, or placed in a way that stops water from flowing out.
The manual also warns that a hose attached to a sink sprayer may burst if installed on the same water line as the dishwasher. If your sink has a sprayer, the hose may need to be disconnected and the opening plugged properly.
How to Load Dishes Correctly
Correct loading is one of the most important parts of using a Hermitlux countertop dishwasher. Before putting dishes inside, remove large food residue from plates, bowls, and utensils. This helps avoid blocking the water hose, filter, and spray arms.

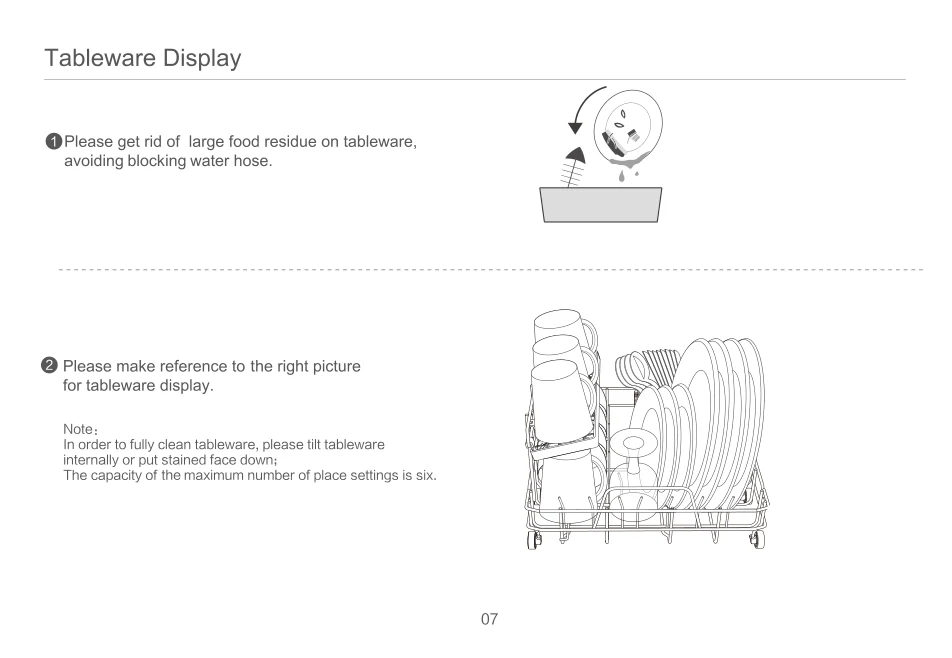

The manual’s tableware display shows plates standing vertically and cups or bowls placed securely in the rack. It also recommends tilting tableware internally or setting it at an angle to improve cleaning. The maximum capacity is listed as six place settings.
For better cleaning, leave enough space between dishes so water can reach every surface. Do not stack plates too tightly, do not let utensils block the spray arms, and do not place large items where they prevent the rack or spray arms from moving. If dishes are not clean after washing, incorrect loading is one of the first things to check.

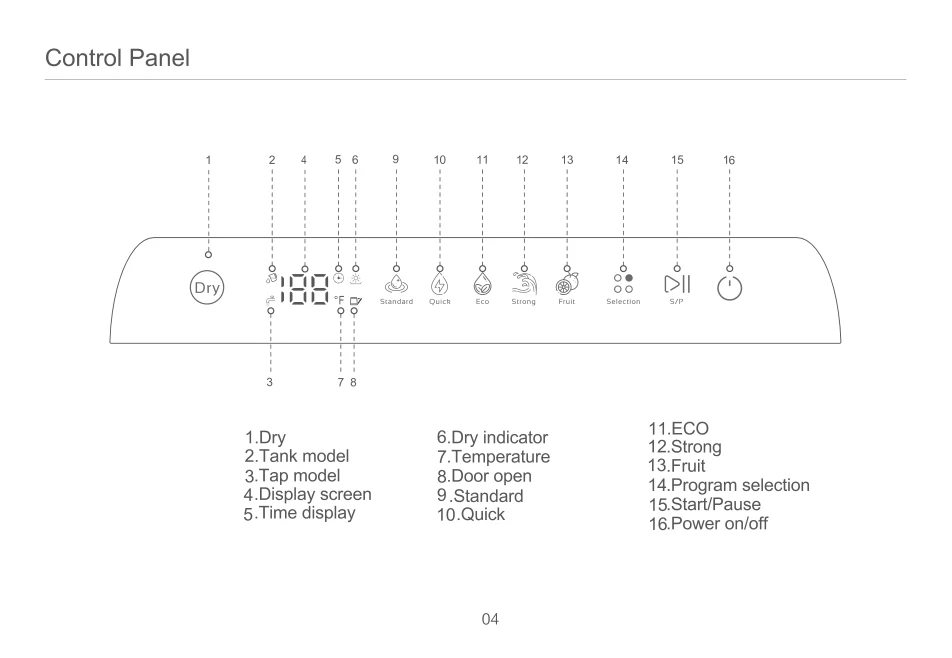

How to Use the Control Panel
The control panel includes Dry, tank model, tap model, display screen, time display, dry indicator, temperature indicator, door open indicator, Standard, Quick, ECO, Strong, Fruit, program selection, Start/Pause, and power on/off.

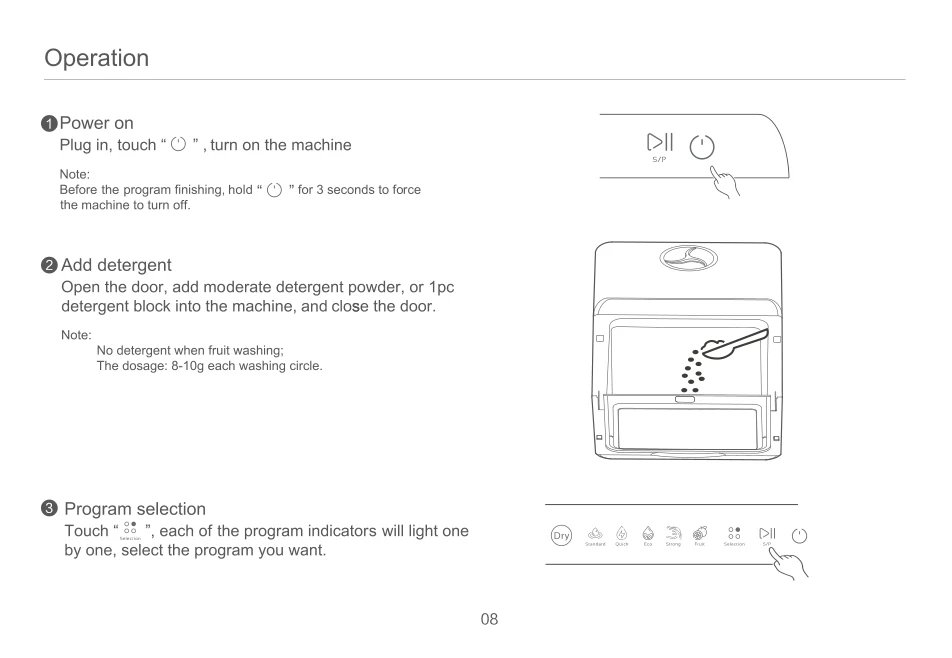

To turn on the dishwasher, plug it in and touch the power button. Then add detergent, select a program, and press Start/Pause. The display and indicator lights help show the selected mode, water status, door status, and running time.
If you need to stop the machine before the program finishes, the manual says you can hold the power button for 3 seconds to force the machine to turn off. Use this only when needed, because interrupting a program may leave water or detergent inside the machine.
How to Add Detergent
Open the door and add a moderate amount of dishwasher detergent powder, or use one dishwasher detergent block. Then close the door before starting the cycle. The manual gives an approximate dosage of 8–10g for each washing cycle, although the Strong program may use more.
Do not add detergent when using the Fruit program. Also do not use regular hand dish soap. If foam appears inside the machine, the troubleshooting section recommends using special dishwasher detergent, wiping out foam by hand, adding water, selecting a program, and repeating the process if needed.

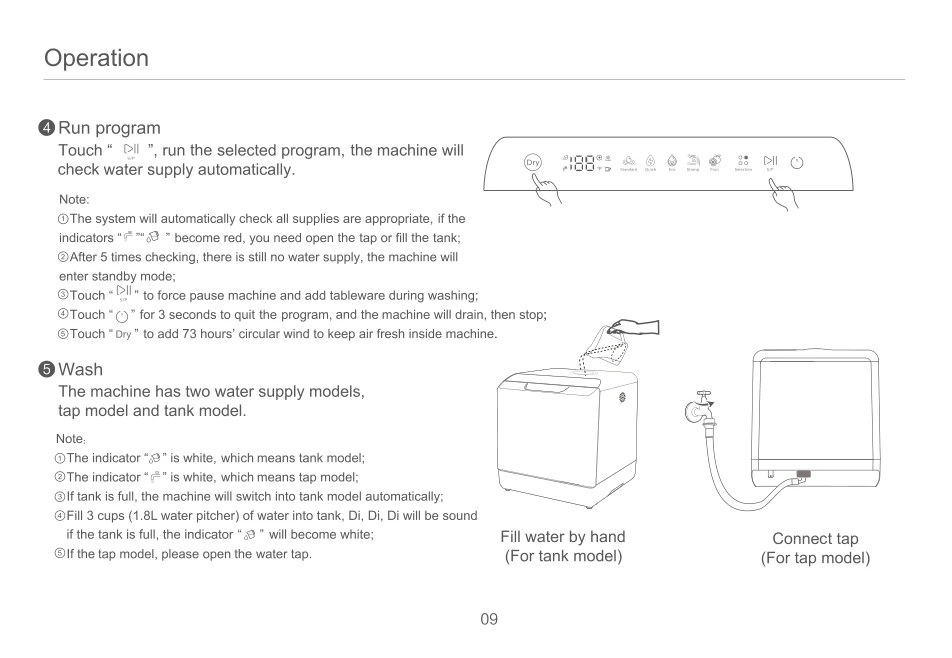

How to Start a Wash Cycle
After loading dishes and adding detergent, touch the program selection button. The program indicators will light up one by one. Choose the program you want, then touch Start/Pause. The dishwasher will automatically check the water supply.
The Hermitlux dishwasher has two water supply modes: tank mode and tap mode. In tank mode, fill water by hand using the pitcher. In tap mode, connect the inlet hose and open the water tap. If the machine needs water, add water until the indicator turns off.
The manual notes that if three cups of 1.8L water are added into the tank, the machine will beep and switch to tank mode automatically. If you are using tap mode, open the water tap before running the dishwasher.

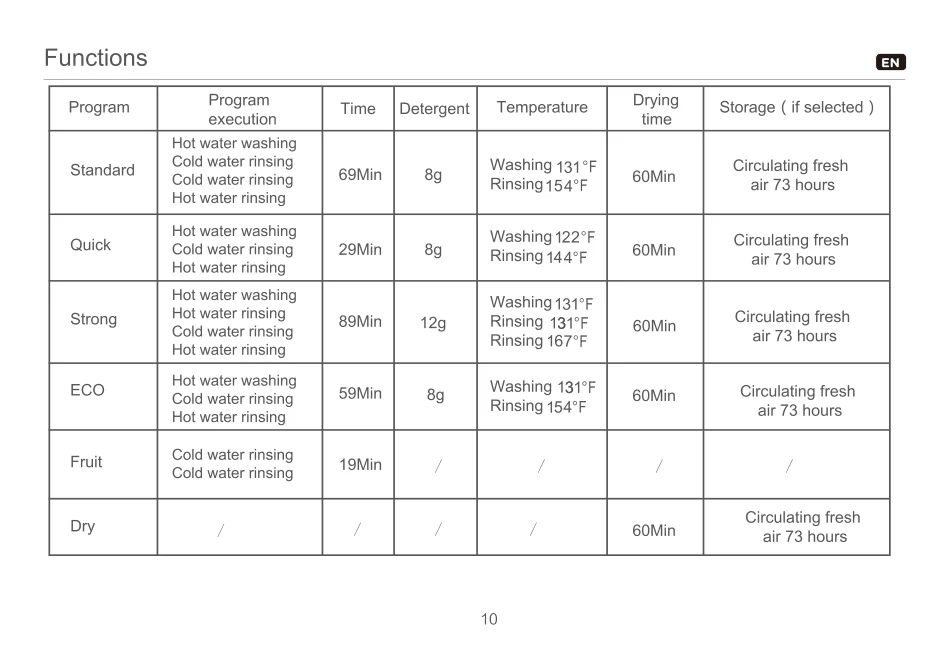

Hermitlux Dishwasher Programs Explained
| Program | Best For | Time | Detergent |
|---|---|---|---|
| Standard | Normal daily dishwashing | 69 min | 8g |
| Quick | Lightly soiled dishes | 29 min | 8g |
| Strong | Heavier soil or more stubborn food | 89 min | 12g |
| ECO | Efficient daily washing | 59 min | 8g |
| Fruit | Cold water rinsing for fruit | 19 min | No detergent |
| Dry | Hot wind drying | 60 min | No detergent |
Use Standard for normal dishes, Quick for lightly soiled items, Strong for dirtier cookware, ECO for efficient daily use, Fruit for rinsing fruit, and Dry when you want extra drying. Standard, Quick, Strong, and ECO also include 60 minutes of drying, and the manual mentions circulating fresh air storage for 73 hours if selected.
How to Add Dishes During Washing
If you forgot to add a dish, touch Start/Pause to pause the machine. Open the door carefully because hot steam or hot water may be inside. Add the dish, close the door, and press Start/Pause again.
Do not open the door too often during the wash cycle. Frequent opening can reduce water temperature, interrupt cleaning, and affect the final result.

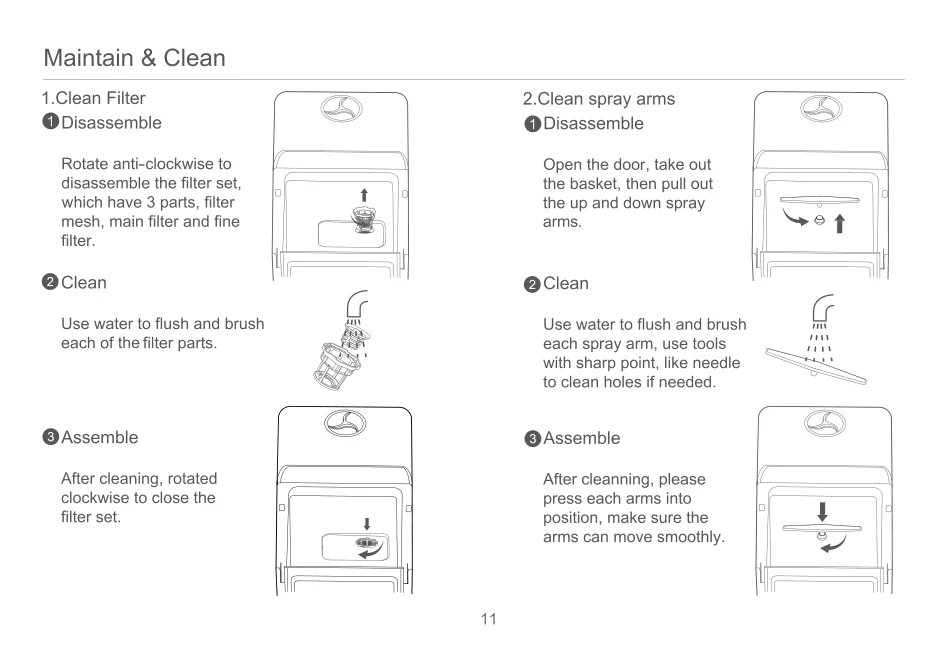

How to Clean the Hermitlux Countertop Dishwasher
Regular cleaning keeps the dishwasher working well. To clean the filter, rotate it anti-clockwise to remove the filter set. The filter includes filter mesh, main filter, and fine filter. Rinse and brush each part with water. After cleaning, reinstall the filter and rotate clockwise to lock it.
To clean the spray arms, open the door, remove the basket, and pull out the upper and lower spray arms. Rinse and brush the arms with water. If the holes are blocked, carefully use a pointed tool such as a needle to clear them. Reinstall the spray arms and make sure they move smoothly.
Blocked filters and spray arms are common reasons why dishes come out dirty or detergent remains in the machine.

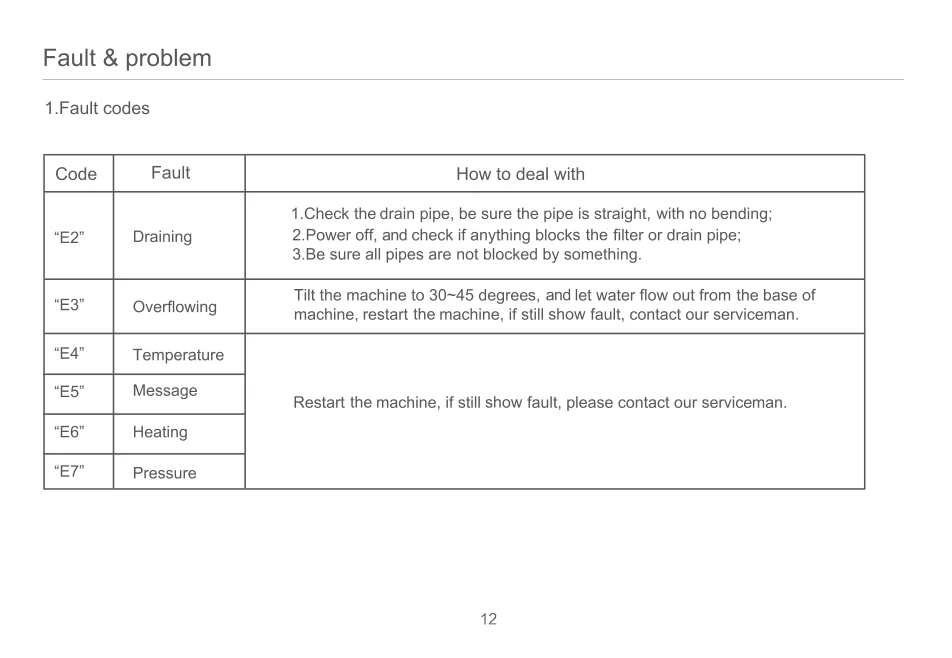

Hermitlux Dishwasher Fault Codes
The manual lists several fault codes. E2 means draining problem. Check that the drain pipe is straight with no bending, power off the machine, and check whether the filter or drain pipe is blocked. E3 means overflowing. The manual suggests tilting the machine 30–45 degrees and letting water flow out from the base, then restarting. If the issue continues, contact service.
E4 relates to temperature, E5 to message, E6 to heating, and E7 to pressure. If restarting does not clear these faults, the manual recommends contacting service.
Common Problems and Fixes

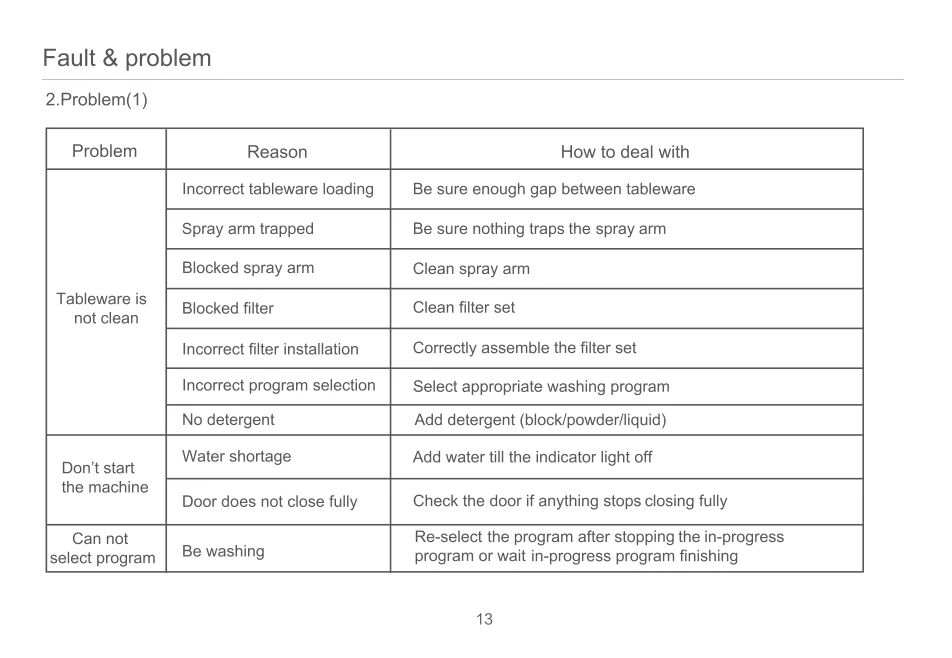

If dishes are not clean, check the loading first. Make sure there is enough space between dishes and nothing traps the spray arm. Then clean the spray arm, clean the filter, reinstall the filter correctly, select a suitable program, and add detergent.
If the machine does not start, the manual lists water shortage and door not fully closed as possible reasons. Add water until the indicator light turns off and check whether anything prevents the door from closing completely.

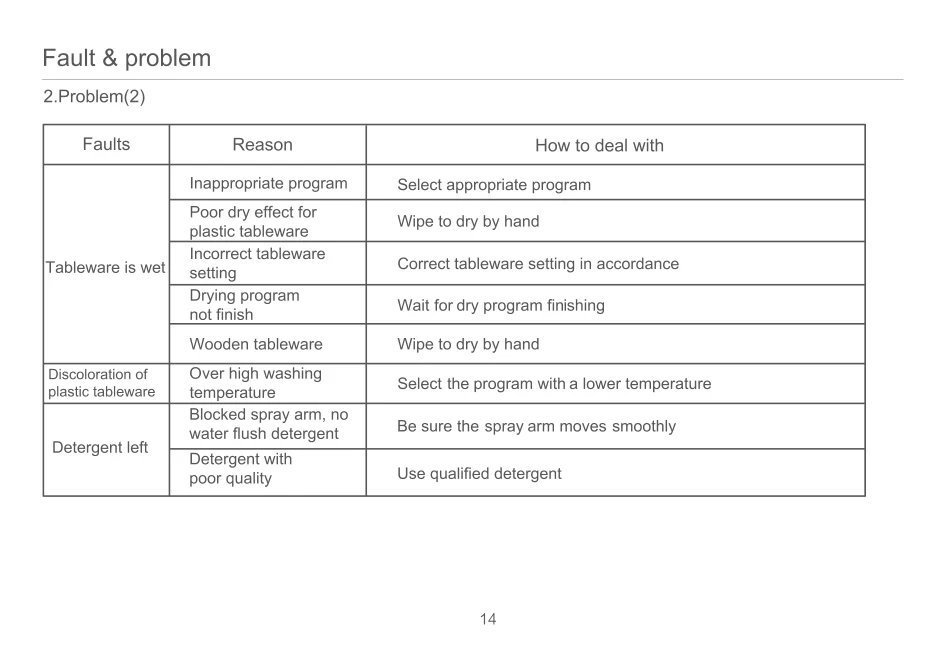

If dishes remain wet, possible causes include the wrong program, poor drying performance on plastic or wooden items, incorrect placement, or a dry cycle that has not finished. For plastic or wooden tableware, wiping by hand may still be needed.

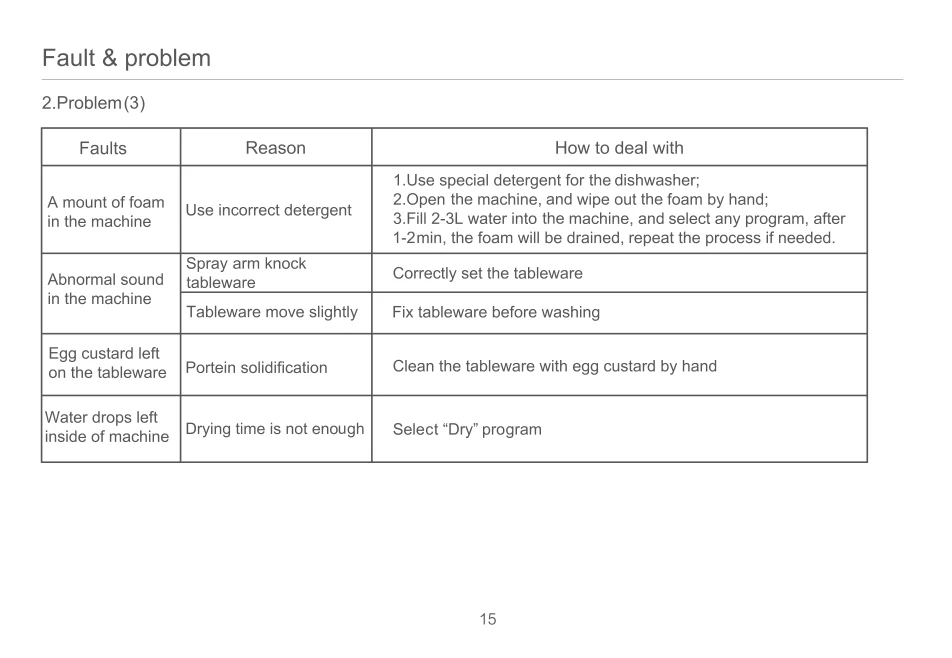

If there is too much foam, use only dishwasher detergent and remove foam by hand if needed. If there is abnormal sound, the spray arm may be hitting dishes or the tableware may be moving. Reload items securely before restarting.
Specifications

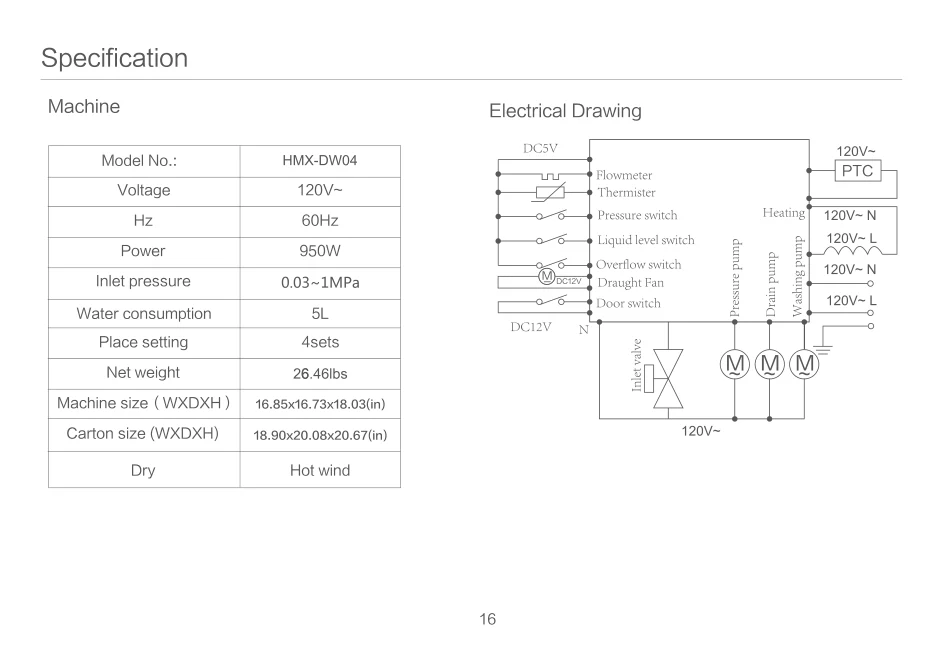

The manual lists the model as HMX-DW04. It uses 120V, 60Hz power, has 950W rated power, inlet pressure of 0.03–1MPa, water consumption of 5L, and a four-place setting capacity. The machine size is listed as 16.85 x 16.73 x 18.03 inches.
Final Tips
Using a Hermitlux countertop dishwasher is simple once you understand the process. Install the hoses correctly, add water by tank or tap mode, scrape large food residue from dishes, load the rack with enough space, add dishwasher detergent, select the right program, and press Start/Pause.
For daily use, focus on correct loading and regular maintenance. Clean the filter and spray arms often, avoid blocking the spray arms, use the correct detergent, and choose the right program for the soil level. If cleaning performance drops, check loading, water supply, filter, spray arms, and detergent before assuming the machine is broken.
With the right setup and routine cleaning, the Hermitlux tabletop dishwasher can make dishwashing easier in a small kitchen while saving counter space and reducing hand washing.
